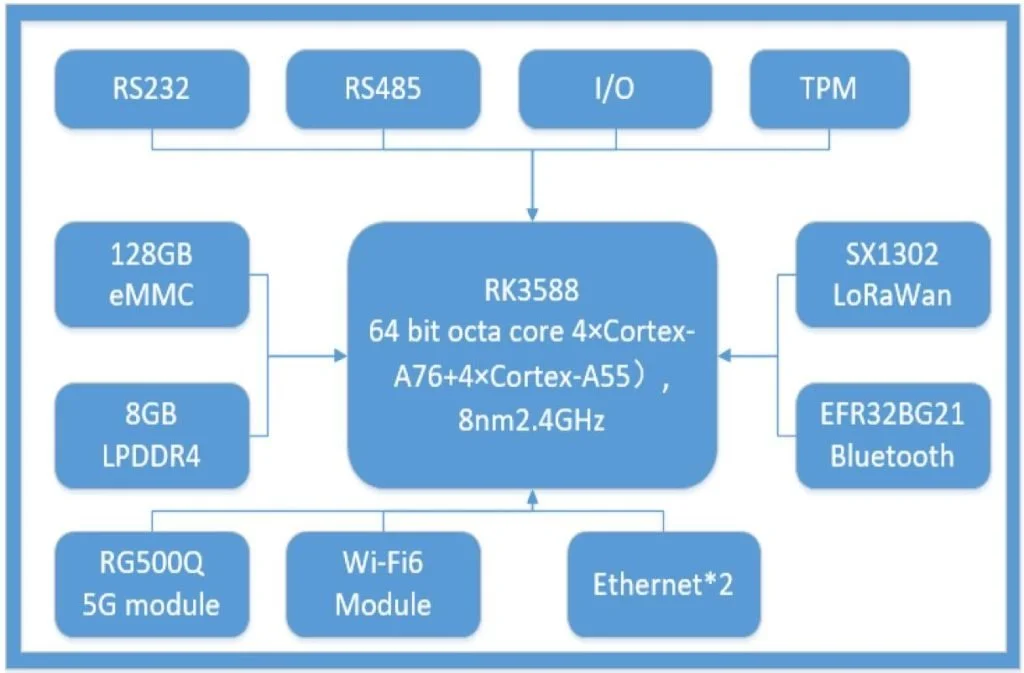

DSGW-380规格书 RK3588工业AI边缘计算机网关

2 * USB 3.0

● WLAN Standard： IEEE 802.11b/g/n/ax, CSMA/CA

● 频率范围：2.4~2.4835GHz (2.4GHz ISM Band) Channels Ch1~Ch13 (For 20MHz Channels)

● 调制方式：

802.11b (DSSS): CCK, DQPSK, DBPSK;

802.11g (OFDM): BPSK, QPSK, QAM16, QAM64;

802.11n (OFDM): BPSK, QPSK, QAM16, QAM64;

802.11ax (OFDMA): BPSK, BPSK_DCM, QPSK, QPSK_DCM, QAM16, QAM16_DCM, QAM64, QAM256, QAM1024;

802.11b: 1, 2, 5.5, 11Mbps;

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps;

802.11n (HT20): MCS0~MCS7(1T1R_SISO) 6.5~72.2Mbps;

802.11n (HT20): MCS8~MCS15(2T2R_MIMO) 13~144.4Mbps;

802.11n (HT40): MCS0~MCS7(1T1R) 13.5~150Mbps;

802.11n (HT40): MCS8~MCS15(2T2R) 27~300Mbps;

802.11ax (HE_MU,26~242RU): MCS0~MCS11(1T1R) 0.4~143.4Mbps;

802.11ax (HE_MU,26~242RU): MCS0~MCS11(2T2R) 0.8~286.8Mbps;

802.11ax(HE_SU,non-OFDMA20MHz):MCS0~MCS11(1T1R)3.6~143.4Mbps;

802.11ax(HE_SU,non-OFDMA20MHz):MCS0~MCS11(2T2R) 7.3~286.8Mbps;

802.11ax(HE_SU,non-OFDMA40MHz):MCS0~MCS11(1T1R) 7.3~286.8Mbps;

802.11ax(HE_SU,non-OFDMA40MHz):MCS0~MCS11(2T2R)14.6~573.5Mbps;

● Frequency Tolerance：≦±15ppm

● 频率范围：

5.15~5.25GHz; 5.25~5.35GHz; 5.47~5.73GHz;

5.735~5.835GHz (5GHz ISM Band)

● 频道：

Ch36, Ch40, Ch44, Ch48; Ch52~Ch64

Ch100~Ch140; Ch149~Ch165 (For 20MHz Channels)

● 调制方式：

802.11a (OFDM): BPSK, QPSK, QAM16, QAM64;

802.11n (OFDM): BPSK, QPSK, QAM16, QAM64;

802.11ac (OFDM): BPSK, QPSK, QAM16, QAM64, QAM256;

802.11ax (OFDMA): BPSK, BPSK_DCM, QPSK, QPSK_DCM, QAM16, QAM16_DCM, QAM64, QAM256, QAM1024;

● 速率：

802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps

802.11n (HT20): MCS0~MCS7(1T1R_SISO) 6.5~72.2Mbps

802.11n (HT20): MCS8~MCS15(2T2R_MIMO) 13~144.4Mbps

802.11n (HT40): MCS0~MCS7(1T1R) 13.5~150Mbps

802.11n (HT40): MCS8~MCS15(2T2R) 27~300Mbps

802.11ac (VHT20): MCS0~MCS8(1T1R) 6.5~86.7Mbps

802.11ac (VHT20): MCS0~MCS8(2T2R) 13~173.3Mbps

802.11ac (VHT40): MCS0~MCS9(1T1R)13.5~200Mbps

802.11ac (VHT40): MCS0~MCS9(2T2R)27~400Mbps

802.11ac (VHT80): MCS0~MCS9(1T1R)29.3~433.3Mbps

802.11ac (VHT80): MCS0~MCS9(2T2R)58.5~866.7Mbps

802.11ax (HE_MU,26~484RU): MCS0~MCS11(1T1R) 0.4~286.8Mbps

802.11ax (HE_MU,26~484RU): MCS0~MCS11(2T2R) 0.8~573.5Mbps

802.11ax(HE_SU,non-OFDMA 20MHz): MCS0~MCS11(1T1R) 3.6~143.4Mbps

802.11ax(HE_SU,non-OFDMA 20MHz): MCS0~MCS11(2T2R) 7.3~286.8Mbps

802.11ax(HE_SU,non-OFDMA 40MHz): MCS0~MCS11(1T1R) 7.3~286.8Mbps

802.11ax(HE_SU,non-OFDMA40MHz):MCS0~MCS11(2T2R) 14.6~573.5Mbps

802.11ax(HE_SU,non-OFDMA80MHz):MCS0~MCS11(1T1R) 15.3~600.4Mbps

802.11ax(HE_SU,non-OFDMA80MHz): MCS0~MCS11(2T2R) 30.6~1201Mbps

● 发射功率r：19.5dBm

● 覆盖范围：最大150米（空旷范围）

● 接收灵敏度：-80dBm@0.1%BER

● 频率偏差：+/-20KHZ

● 频段范围 (MHz)：2401.0~2483.5

● 低频(MHz)：2400

● 高频(MHz)：2483.5

● E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW

● 带宽 (MHz)：2MHz

● 调制方式：GFSK

5G RM500Q-CN/

RM500Q￾AE/RM502QAE/

RM505Q-AE

● 5G SA Sub-6: Max. 2.1Gbps (DL)/ Max. 900Mbps (UL)

● 5G NSA Sub-6: Max. 2.5Gbps (DL)/Max. 525/550Mbps (UL)

● 5G SA Sub-6:

Max. 2.1Gbps (DL)/Max. 450Mbps (UL)(RM500Q-AE/

RM505Q-AE);Max. 4.2Gbps (DL)/Max. 450Mbps (UL)(RM502Q-AE)

● 5G NSA Sub-6:

Max. 2.5Gbps (DL)/Max. 650Mbps (UL)(RM500Q-AE/

RM505Q-AE); Max. 5.0Gbps (DL)/Max. 650Mbps (UL)(RM502Q-AE)

● LTE-FDD: Max. 1Gbps (DL)/Max. 200Mbps (UL)

● LTE-FDD:

Max. 1Gbps (DL)/Max. 200Mbps (UL)

(RM500Q-AE/RM505Q-AE)

● LTE-FDD:

Max. 2Gbps (DL)/Max. 200Mbps (UL) (RM502Q-AE)

5G NR: n1/n28/n41/n78/n79

● LTE-FDD: B1/B3/B5/B8

● LTE-TDD: B34/B38/B39/B40/B41

● WCDMA: B1/B8

● 5GNR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79

● LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

● LTE-TDD: B34/B38/39/B40/B41/B42/B43/B4

● 支持频段: RU864, IN865, EU868, US915, AU915, KR920, AS923, CN470

● 发射功率：27dBm

● 接收灵敏度： -139dBm @SF12, BW125kHz

● 覆盖范围: 最大 10KM, 空旷范围

● 协议: V1.0 Class A/Class C and V1.0.2 Class A/Class C

● LoRa 工作模式：Full/half-duplex (optional)

Standard(Yes) Custom(No)
